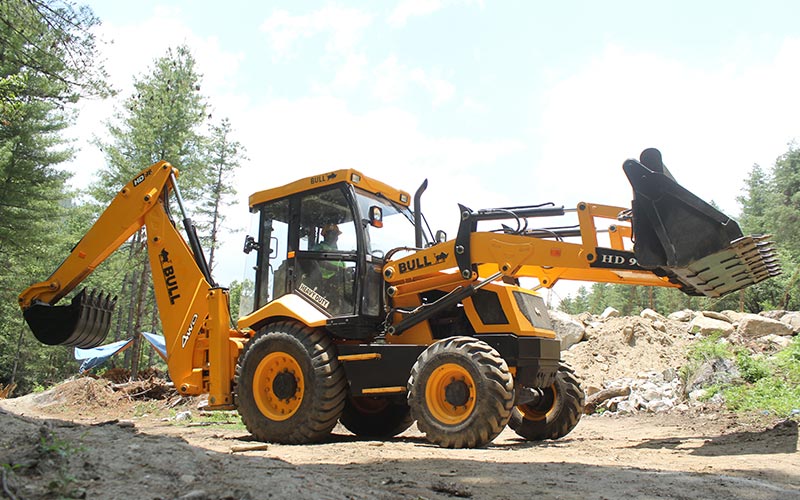

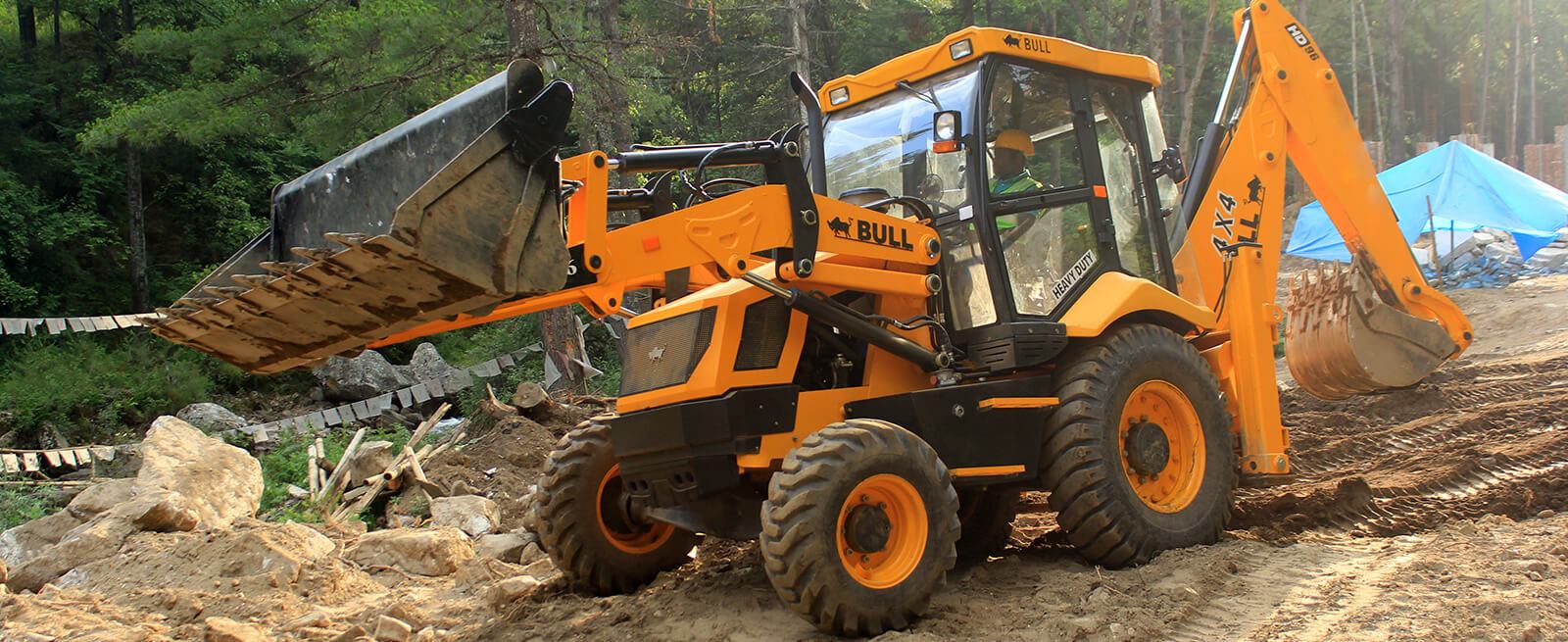

Bull HD96 4WD Backhoe

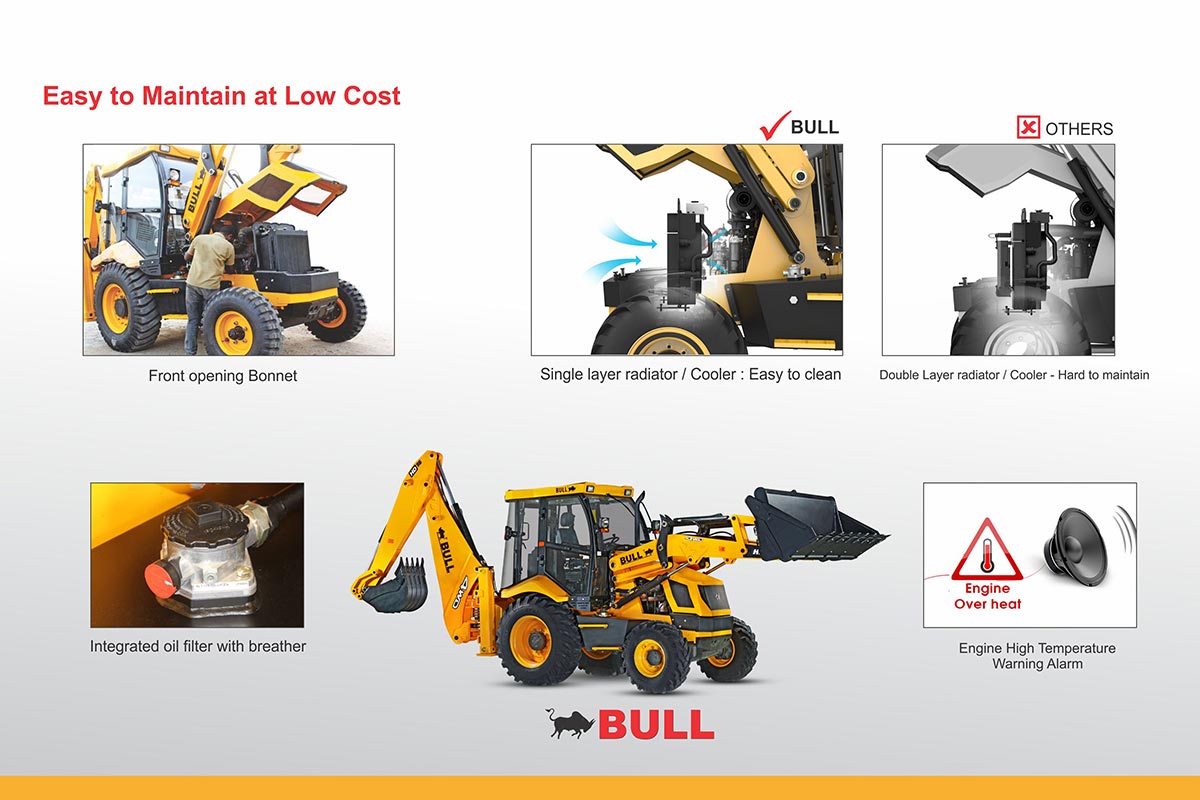

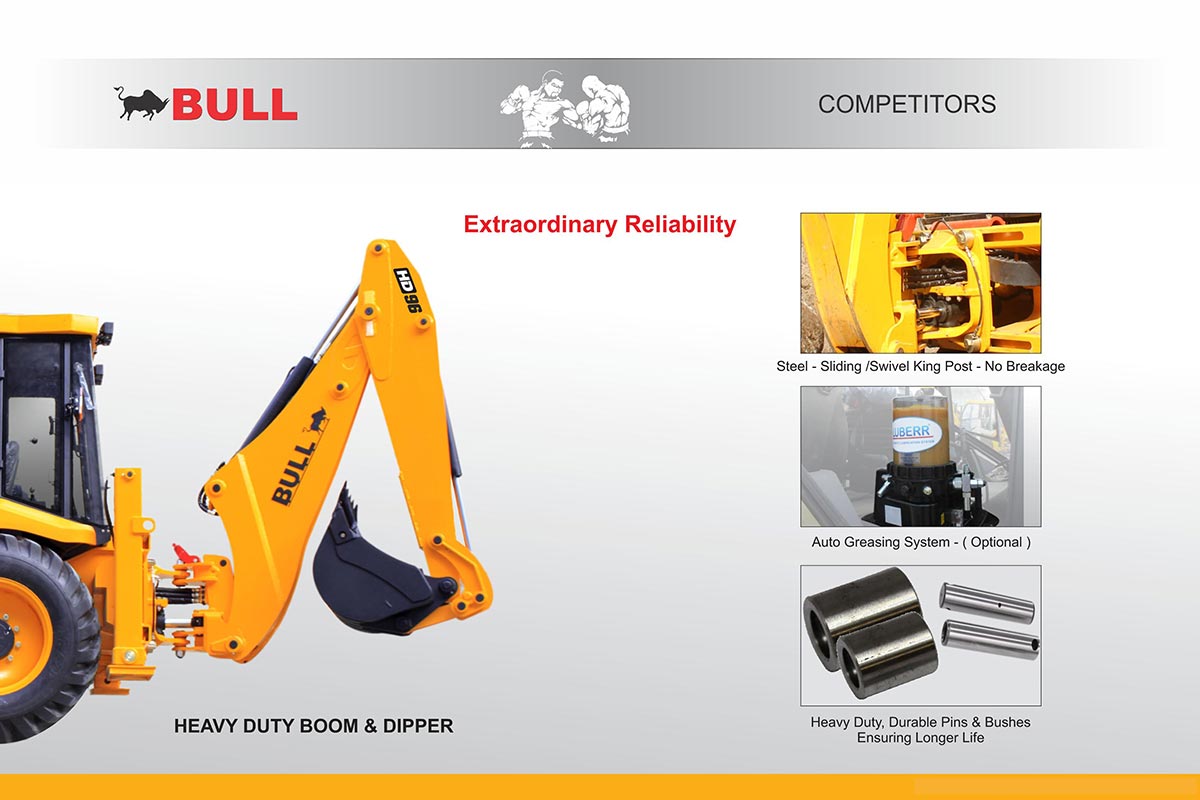

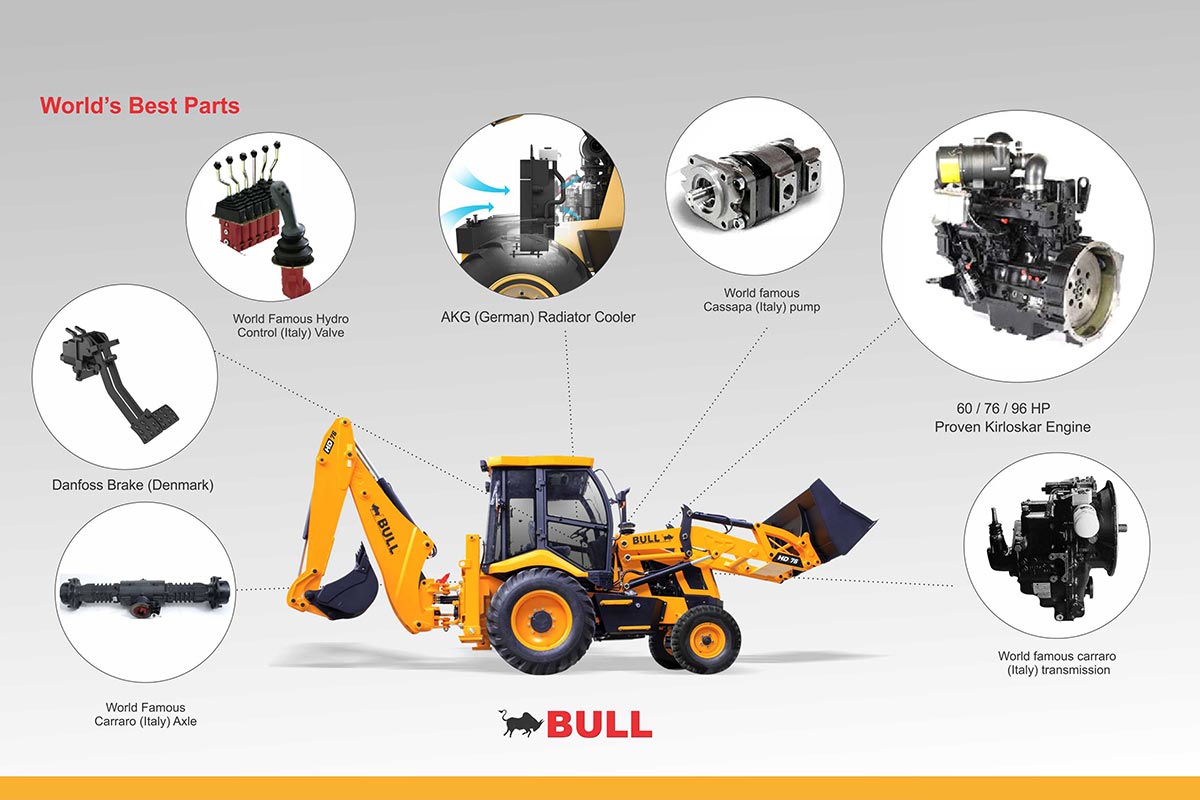

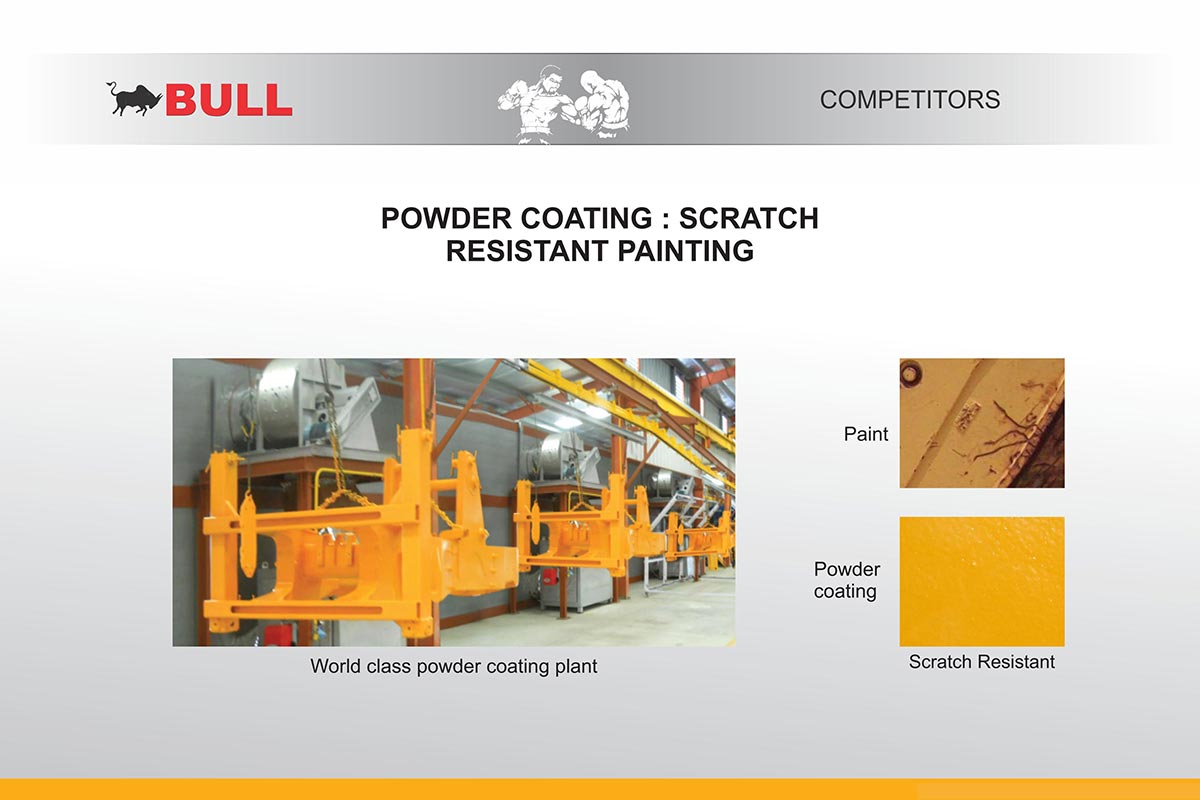

Salient Features

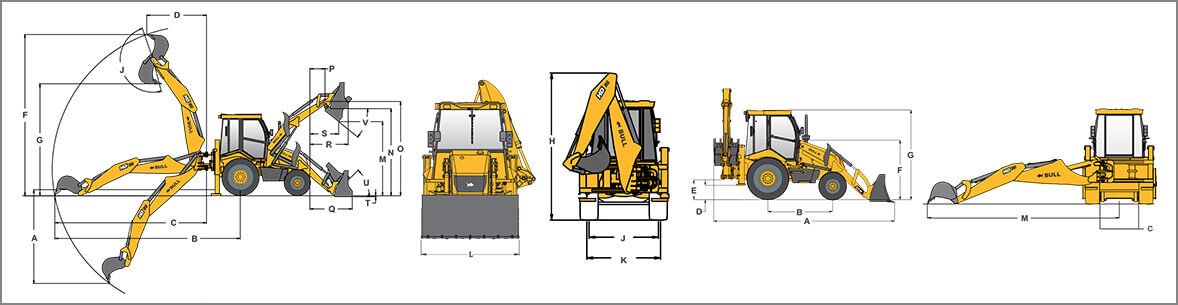

DIMENSIONS

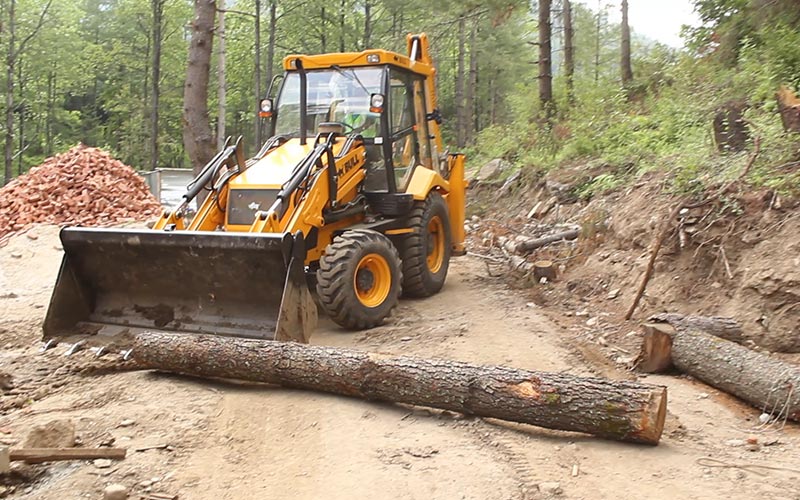

LOADER PERFORMANCE

		Without Link Bracket
		Meter
	Standard GP Bucket Capacity	1.1 cu.m
I	Dump Height	2.96 m
J	Load Over Height	3.39 m
K	Pin Height	3.61 m
L	Pin Forward Reach	0.42 m
M	Reach at Ground	1.47 m
N	Reach at full height	1.28 m
O	Reach at full Height bkt Dumped	0.89 m
P	Below ground level DIG Depth	0.1 m
Q	Roll back at Ground	49⁰ degree
R	Dump Angle	45⁰ degree

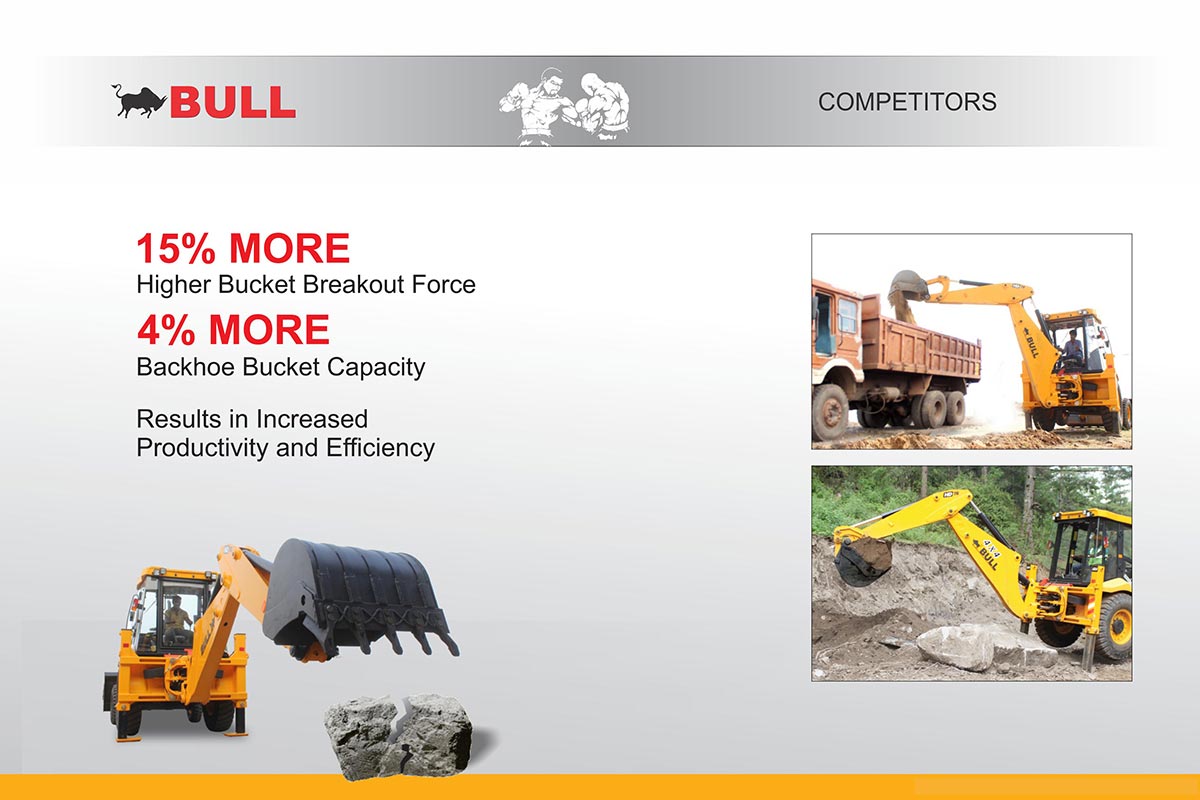

	Bucket Break-out Force	8183 kgf
	Loader Arm Break-out Force	5251 kgf
	Pay Load	1800 kgf

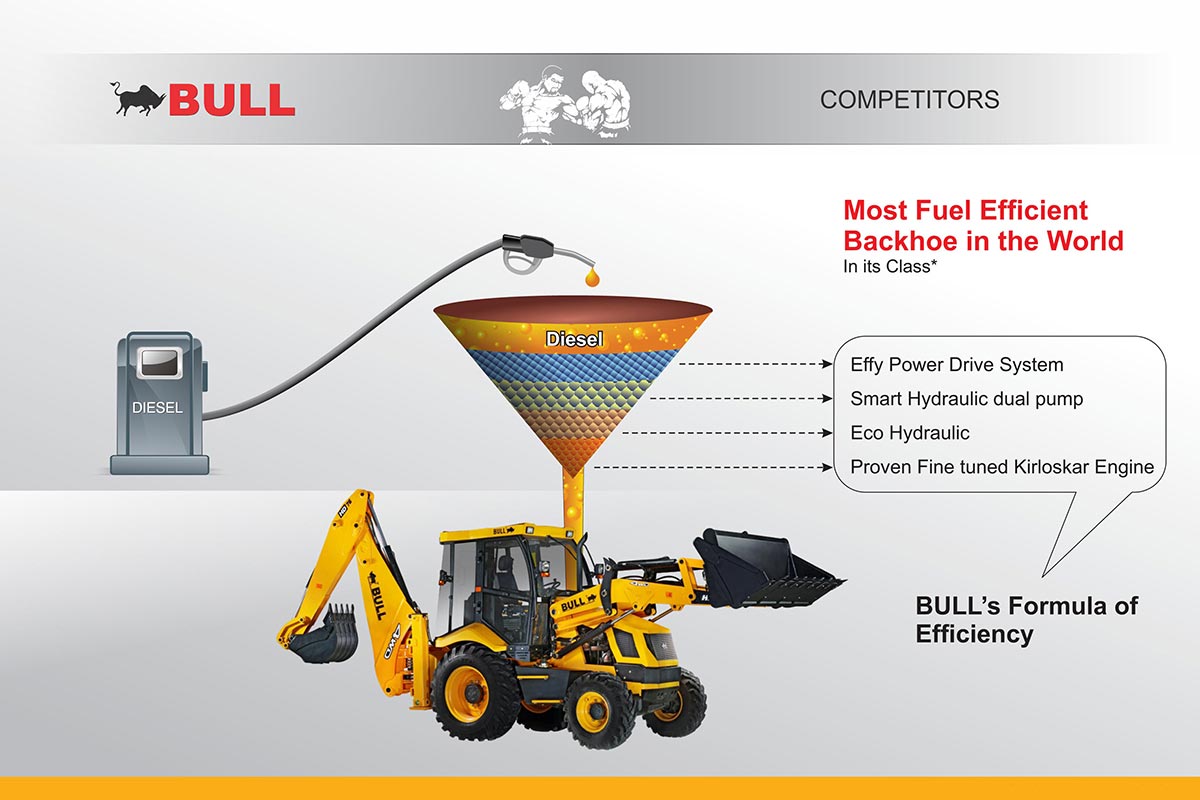

ENGINE

Engine	Kirloskar 4R 1040, TA2 EURO III A, Diesel Engine.
No of cylinder:	4
Gross Power:	71.6 Kw (96HP) @ 2200 Rpm.
Torque	377 Nm@1400RPM.

TRANSMISSION

BULL HD 96HP comes with CARRARO synchroshuttle transmission that provides superb drive power in all conditions. it consists of a 4-speed fully synchromesh gearbox with integral torque convertor and electrically operated forward & reversing shuttle.

The pedals layout and conventional 4 pattern gear lever with transmission disconnect switch adds to the overall ease of operation.On the move gear changes are possbile.

Option: SMART HTS offers state of the art open loop Hydrostatic drive(Patent pending).

AXLES

Rear: Drive axle rigidly mounted, incorporates Max-trac torque proportioning differential, driven by short propshaft from gear box.

Front: Steer axle, centrally pivoted with oscillation angle ±16°.

BREAKS

Service: Hydraulically actuated, duel line, self adjusting, compensated oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc., requiring no maintenance. Operation Through independent pedals linked together for normal use.

Two independently operatable foot pedals enable machine to maneuver in tight spaces.

Parking: Hand operated, oil immersed multi disc on the rear axle.

STEERING

Full power, front wheel hydraulic power steering with manual capability in the event of engine or hydraullic power failure.

Hydraulic supply from pump via priority valve. Working pressure 1958 psi (135 bar)

ELECTRICALS

180 Ampere-hour 12 volts battery system with alternator and full road lighting.

TYRES

Front: 2WD: 9.00X16 – I6PR, 4WD: 12.5/80X18 -12PR

Rear: 2WD&4WD :16.9X28 -12PR(STD INDUSTRIAL TYRE) : 14.00X25-20PR(HEAVY DUTY TYRE)

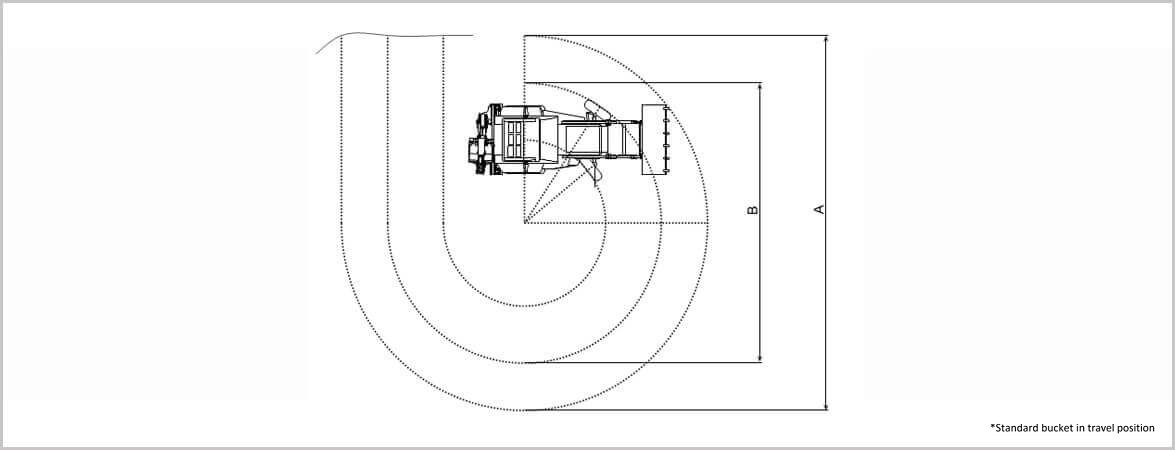

TURNING CIRCLE

Inner wheels bracked

A* Outside loader bucket 8.8 m

B Outside Wheels 6.3 m

Inner wheels not bracked

A* Outside loader bucket 11.6 m

B Outside Wheels 8.9 m

SPEED

Forward Km/hr	Reverse Km/hr
Max: 40 Km/Hr	Max: 40 Km/Hr

HYDRAULICS

SMART technology hydraulics : 3335 PSI (230bar).

Pump flow : 134 LPM at 2200RPM.

WEIGHT

9000 kgs with Standard GP Bucket Option

SERVICE CAPACITIES

	System	Service
Hydraulic Tank	125 Ltr	100 Ltr
Fuel Tank	115/150 Ltr*	–
Engine Coolant	17 Ltr	15 Ltr
Engine Oil	12 Ltr	12 Ltr
Transmission	19.5 Ltr	16 Ltr
Rear Axle	17 ltr	17 ltr
4WD Front Axle	8 ltr	8 ltr

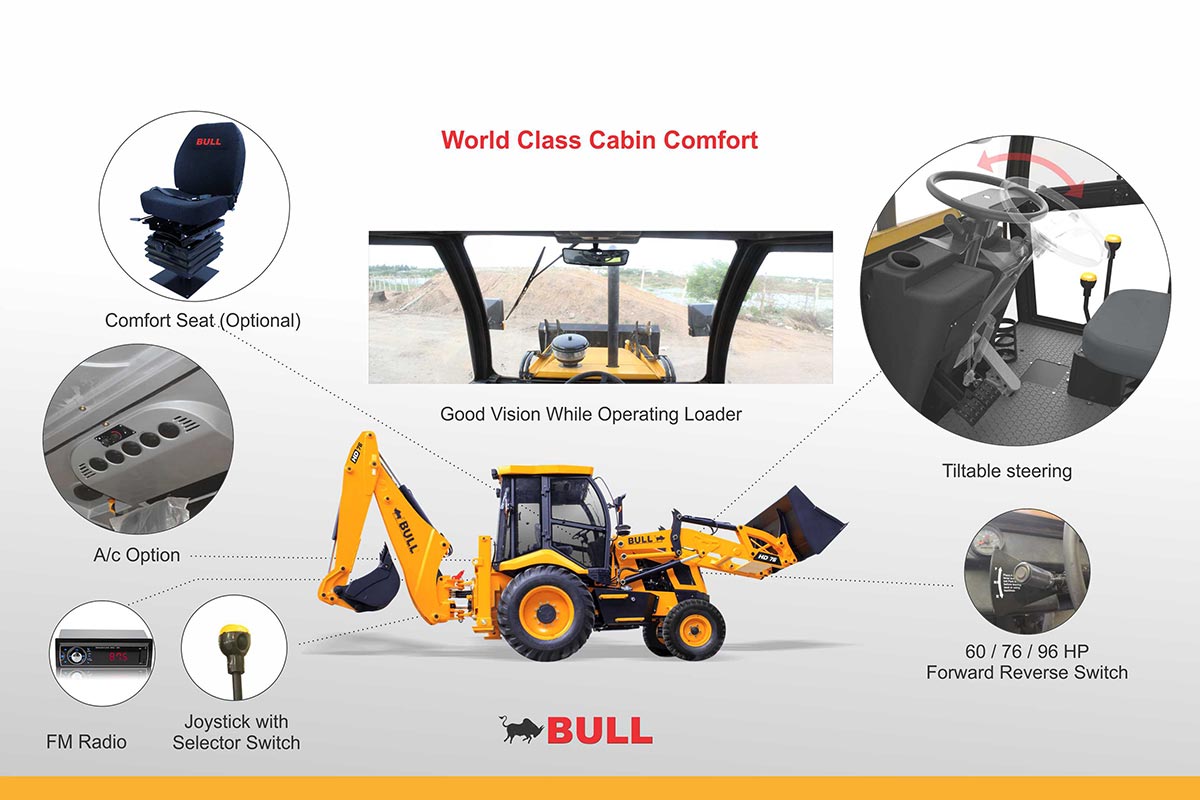

CAB

Front Curved cab glasses provide excellent visibility.
Excellent operator safety. Conforms to ROPS and FOPS standards .
Plenty of legroom minimises fatigue and allows the operator to work un-interrupted for long hours.
A fully adjustable seat combined with ergonomically positioned controls and soft touch steering wheel.
Cab provides easy ‘walk through’ two door access. Other features include seat belt, large convex rear view mirror, interior light, front screen wiper, front and rear horn, hazard warning system, tool box and helper seat.

Instrumentation panel is positioned on the right hand side includes engine speed, engine hours, fuel level and water temperature.
Audible and visual fault warning system for alternator charge, coolant temperature, engine oil pressure, blocked air filter, transmission oil temperature and hand-brake on.

OPTIONS

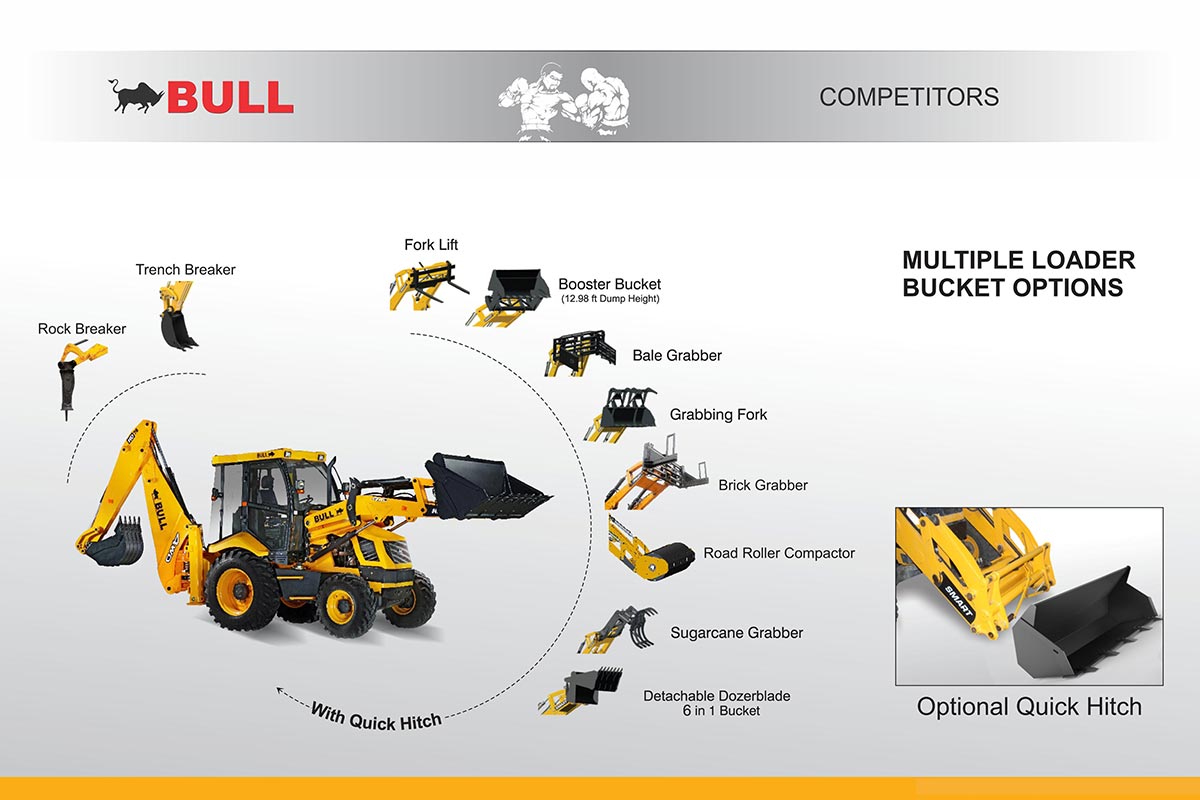

Excavator Buckets

Capacities

– 0.23 cu.m (standard)

Options

– 0.1 cu.m

– 0.17 cu.m

– 0.21 cu.m

Ditch Cleaning Bucket

Taper Ditching Bucket

Square Hole Bucket

Rock Breaker

Ripper Tooth

Loader booster bucket with 12.98 ft dump height

6 in 1 Bucket

4 wheel drive
